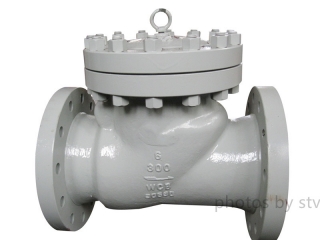

A216 WCB Swing Check Valve, 6 Inch, 300 LB, RF

A216 WCB Swing Check Valve, 6 Inch, 300 LB, RF
Product Detail
Design standard: ASME B16.34
Body material: WCB.
Nominal diameter: 6" (DN150).
Pressure: 300 LB (PN25).
End connection: RF.
Face to face: ANSI B16.10.
Working temperature: -20℃~+425℃.
Test and inspection: API 598.
Product Range
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2"~24" (DN15~DN600).
End connection: BW, Flanged.
Pressure range: 150 LBs~2500 LBs (PN16~PN420).
Operation: Handwheel, Gearbox, Electric, Pneumatic.

Working temperature: -29℃~+560℃.
