ETM Armaturen / Europe Technology Manufacturer ![ETM Armaturen / Europe Technology Manufacturer](http://metalurgija.lt//var/cache/users/1801_96e7fce14dfd43e27d87479eeb163a8b-fit_height_200x70.jpg)
Šalis: Kinija

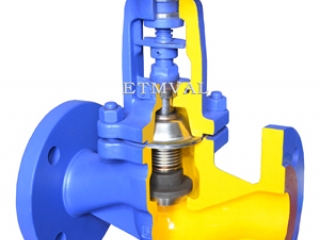

ETM Bellows Seal Globe Valve
![]() |
|
ETM FIG.P.061/062/063
DIN Bellows Seal Stop Valve Plus Type
Bellow Globe Valve / Feature:
Double wall bellows seal as standard
Heat dissipating bonnet design
Circlip fixing device
Storage of oil device
Bellows seal welded to stem
Bellows seal 8,000 load cycles
Yoke gasket,double chambered
Plug with marginal seat Welded seat in stellite or Cr-steel
External stem thread
Actuator retrofitting Secondary sealing: gland packing
Stem with roll hardened thread
DIN PN:PN16,PN25,PN40,PN63
DIN DN:DN15-DN400
Temperature Rating:-40°C up to +420°C
Body forms:Straight pattern body, Y-pattern body, Angle pattern body Basic shell material:Low temperature carbon steel, Carbon steel, High temperature carbon steel, Stainless steel, High temperature stainless steel, High chromium stainless steel, Hastelloy, Inconel, Pure nickel, Titanium, Other special alloys.
Connections:Flanged ends, Butt welding ends, Socket welding ends, Threaded ends, Other requirements
Operation:Handwheel, Lever, Chainwheel, Gear operator, Pneumatic piston actuator, Pneumatic diaphragm actuator, Electric actuator
Bellows Globe Valve / Applications: Industry, power stations , flue gas purification plant, processing technology, gas supply, vapour facilities, recycling facilities, vacuum facilities, hot water, heating technology, district heating, thermal oil applications, general plant manufacturing, etc.
Bellows Globe Valve / Mediums: Steam, gases, hot water, thermal oil, process water, vacuum facilities, ammonia etc.
Standard material : GP240GH (1.0619/GS-C25),G-X6CrNi18.9(1.4308),G-X6CrNiMo18.10 (1.4408)
Design&manufacture standard conforms to EN 13709
Face to face standard conforms to EN 558-1
Flange standard conforms to EN 1092-1
Test conforms to EN 12266
